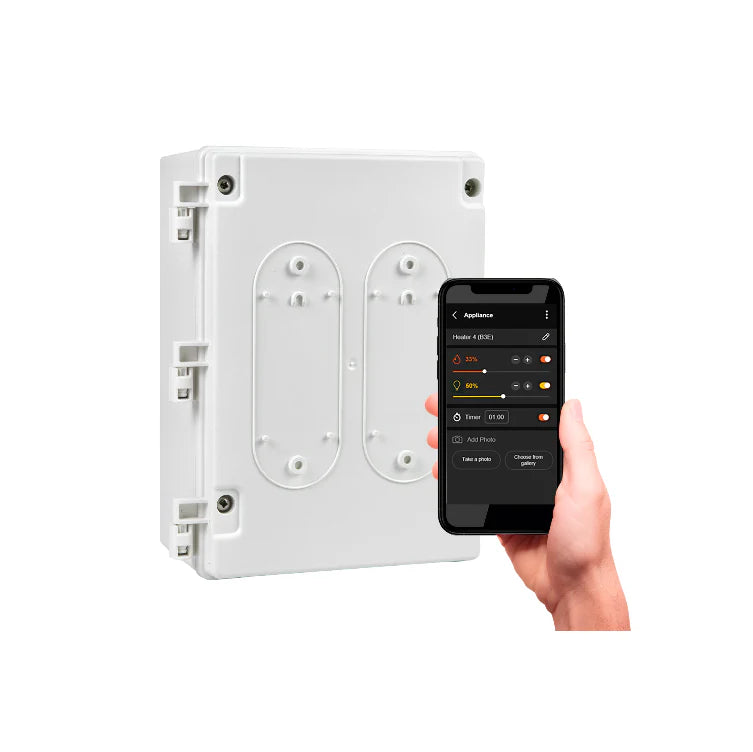

Affinity On/Off Controller - 1 Channel
Affinity On/Off Controller - 1 Channel
DESCRIPTION
The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

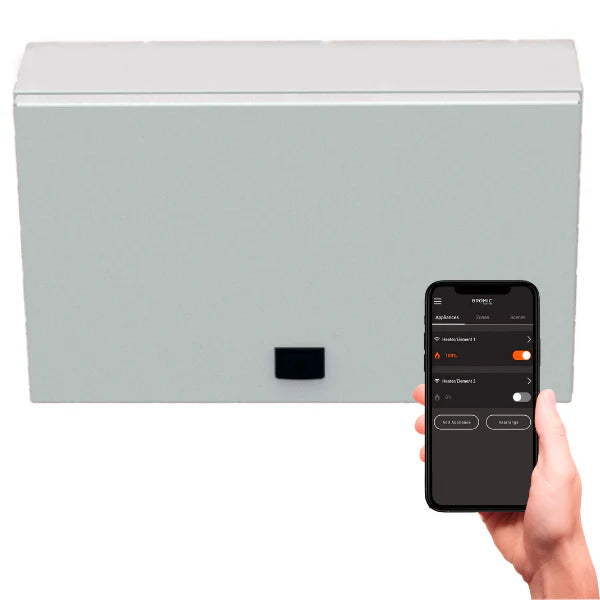

3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.
KEY FEATURES
The Affinity Smart-Heat™ On/Off Control by Bromic Heating allows for connected Platinum and Tungsten Collection gas or electric heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. Key features include:
Various Models Available: This series includes options for 1, 2, and 5 channel inputs with each channel input controlling up to 6000W of power or 10 gas heaters.
Wifi & Bluetooth Connectivity: Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating app.
Straight-Forward Function: Option for full-on or full-off power.

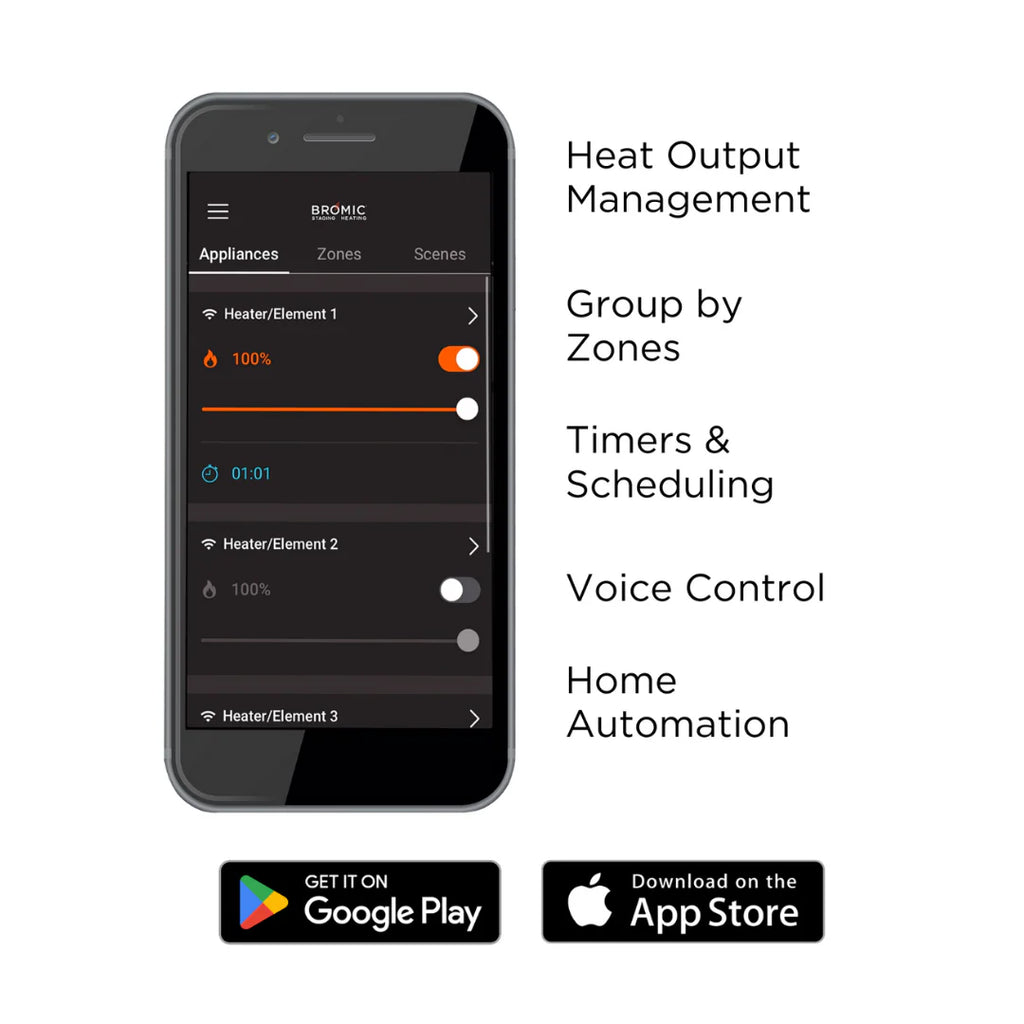

Advanced Features: Set timers and schedules, create heating zones and manage multiple sites.
Admin-Friendly: Multi-user management with customizable admin controls.
PRODUCT SPECIFICATIONS
Model Options:
· Smart-Heat Control On/Off 1 CH: BH3130051
· Smart-Heat Control On/Off 2 CH: BH3130052
· Smart-Heat Control On/Off 5 CH: BH3130053
Number of Channels:
· 1 channel
· 2 channels
· 5 channels
Voltage & Max Capacity Per Channel:
· 1 CH: 100-127V – 1kW, 220-240V – 6kW
· 2 CH: 100-127V – 1kW, 220-240V – 6kW
· 5 CH: 3N-220/380V – 6kW, 3N-230/400V – 6kW, 3N-240/415V – 6kW, 3N-277/480V – 6kW
Operating Temperature Range: -20°C to +30°C for all models
Protection Rating: IP54 for all models
Dimensions:
· 1 CH & 2 CH: 290 x 202 x 112mm
· 5 CH: 500 x 340 x 202mm
Weight:
· 1 CH: 1.4 kg
· 2 CH: 1.6 kg
· 5 CH: 11.0 kg
Wi-Fi Connectivity: 2.4GHz (all models)
Warranty: 1 year parts
