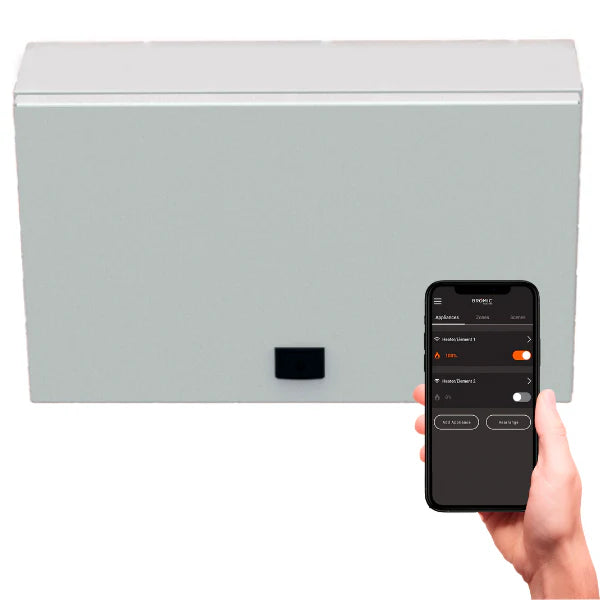

Affinity On/Off Controller - 5 Channel

DESCRIPTION

The On/Off series allows for connected Platinum or Tungsten Collection gas or electric Bromic heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. This series includes options for 1, 2, and 5 channel inputs. Each channel input can control up to 6000W of power or 10 gas heaters. Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

3-Phase 5 Channel model is complete with an included expansion board allowing for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration.

KEY FEATURES

The Affinity Smart-Heat™ On/Off Control by Bromic Heating allows for connected Platinum and Tungsten Collection gas or electric heaters to be turned on or off at full power capacity – providing straight forward function and usage of your outdoor heater. Key features include:

Various Models Available: This series includes options for 1, 2, and 5 channel inputs with each channel input controlling up to 6000W of power or 10 gas heaters.

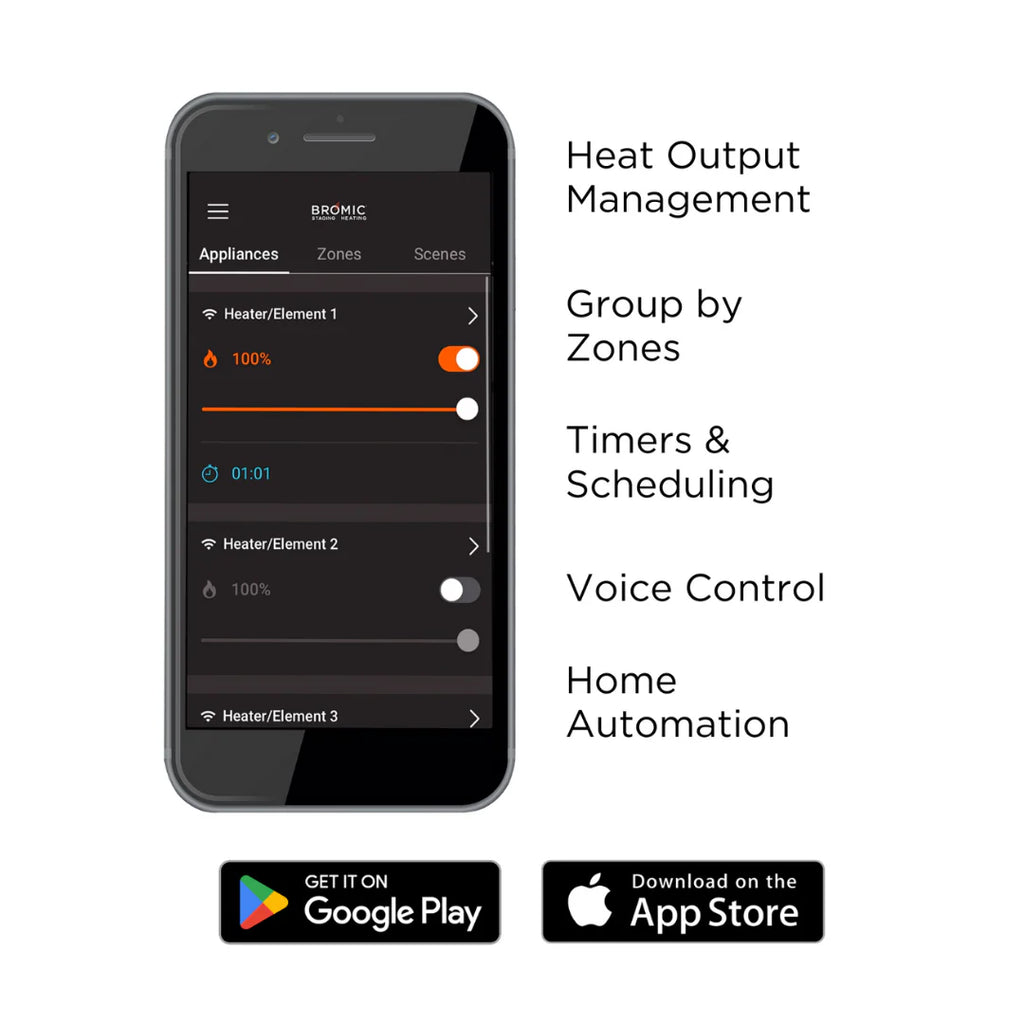

Wifi & Bluetooth Connectivity: Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating app.

Straight-Forward Function: Option for full-on or full-off power.

Advanced Features: Set timers and schedules, create heating zones and manage multiple sites.

Admin-Friendly: Multi-user management with customizable admin controls.

Optional Accessory: Added Expansion Board accessory allows for seamless ethernet integration for a full-proof connection to your outdoor heaters or 0-10V control for Home or Business Automation integration. (Included within 3-Phase 5 Channel model)

PRODUCT SPECIFICATIONS

Model Options:

·       Smart-Heat Control On/Off 1 CH: BH3130051

·       Smart-Heat Control On/Off 2 CH: BH3130052

·       Smart-Heat Control On/Off 5 CH: BH3130053

Number of Channels:

·       1 channel

·       2 channels

·       5 channels

Voltage & Max Capacity Per Channel:

·       1 CH: 100-127V – 1kW, 220-240V – 6kW

·       2 CH: 100-127V – 1kW, 220-240V – 6kW

·       5 CH: 3N-220/380V – 6kW, 3N-230/400V – 6kW, 3N-240/415V – 6kW, 3N-277/480V – 6kW

Operating Temperature Range: -20°C to +30°C for all models

Protection Rating: IP54 for all models

Dimensions:

·       1 CH & 2 CH: 290 x 202 x 112mm

·       5 CH: 500 x 340 x 202mm

Weight:

·       1 CH: 1.4 kg

·       2 CH: 1.6 kg

·       5 CH: 11.0 kg

Wi-Fi Connectivity: 2.4GHz (all models)

Warranty: 1 year parts
